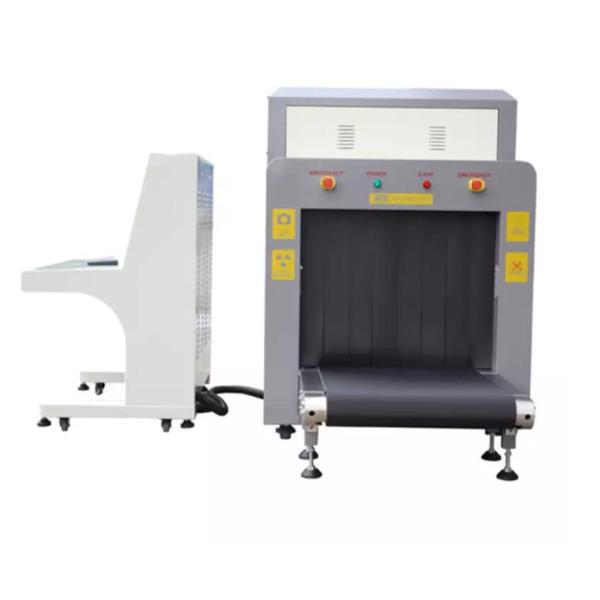

X Ray Security baggage Scanner for bus station /airpport /museum/court/movie theater
Product Introduction :
X-ray penetrate inspection , the object can be found within the metal structure , can display the naked eye
can not see where the liquid is also very obvious object display .
Product specification :
1. Detection Mode: X-Ray baggage scanner
2. Tunnel Size: 650(W)*500(H) mm
3. Conveyor Speed: 0.2m/s
4. Conveyor Max Load:170kg
5. Single inspection dosage: ＜1.5uGy
6. Wire Resolution:Ф0.1mm metal line
7. Steel Penetration:34MM metal line
8. Maximum leakage radiation: <0.05uGy/h
9. System Power:220AVC/50Hz
Airport Cargo Security Baggage X Ray Machine Intuitive Operator Interface
- Tunnel size: 810mm(W)*655mm(H)
- Scan luggage up to 80cm wide, 65cm high.
- Specially designed X-ray equipment for big size luggage.
- Popular model for big events, meeting, law enforcement security control.
| X-ray Generator |
| Ray Beam direction | Top-illuminated |
| Tube current | 0.4~1.25mA(adjustable) |
| Tube voltage | 100~160 kV(adjustable) |
| Ray beam divergence angle | 90° |
| The cooling / work cycle | Sealed oil cooling / 100％ |
| Image Processing System |
| X-ray sensor | L-shaped photodiode array detector (Multi-energy), 12bit depth |
| Monitor | high resolution 17 inch LCD monitor |
| Color image display | 24-bit true color display |
| Console | full package sealed display, connecting cables can be adjusted according |
| Edge Enhancement | the outline of objects will be more clear |
Specification :
| model | ZAD-X6550 |
| Power wastage | 1.0KW(Max) |
| Noise | ＜65 dB |
| Operating Temperature | 0℃～45℃ |
| Storage Temperature | -20℃～60℃ |
Application:
Used in the factory testing of security products and business units such as: electronic factories ,
shoe factories, toy factories, courts, railway stations, and event bag, line security management package .
Product Tags:
|
|
Security 6550 X Ray Security Scanner 220AVC/50Hz For Checking Sensitive Metal Images
|
